FLOATING PANEL MECHANISM WITH 3-WAY POSITION ADJUSTMENT
Fully adjustable display allows you to change the depth, height and angle for easy vehicle fitment.
- - Forward / Backward 20mm (2 steps)
- - Up / Down 39mm (4 steps)
- - Tilt: -10°/ +45° (stepless)
Skip to product information
Kenwood DNR992RVS - 10.1 Inch HD CarPlay,Android Auto Wireless Mirroring DAB Bluetooth Stereo
DNR992RVS
£1,099.99
Key Features
- 10.1" HD (1280 x 720px) LCD display for sharp, high-contrast images, vivid colors and superior wide viewing angle
- Floating Panel Mechanism with 3-way Position Adjustment.
- Wi-Fi built-in for convenient wireless connection with a compatible smartphone.
- Supports CarPlay & Android Auto wirelessly or connected via USB.
- Supports Wireless Mirroring for Android including 2-way touch control capability.

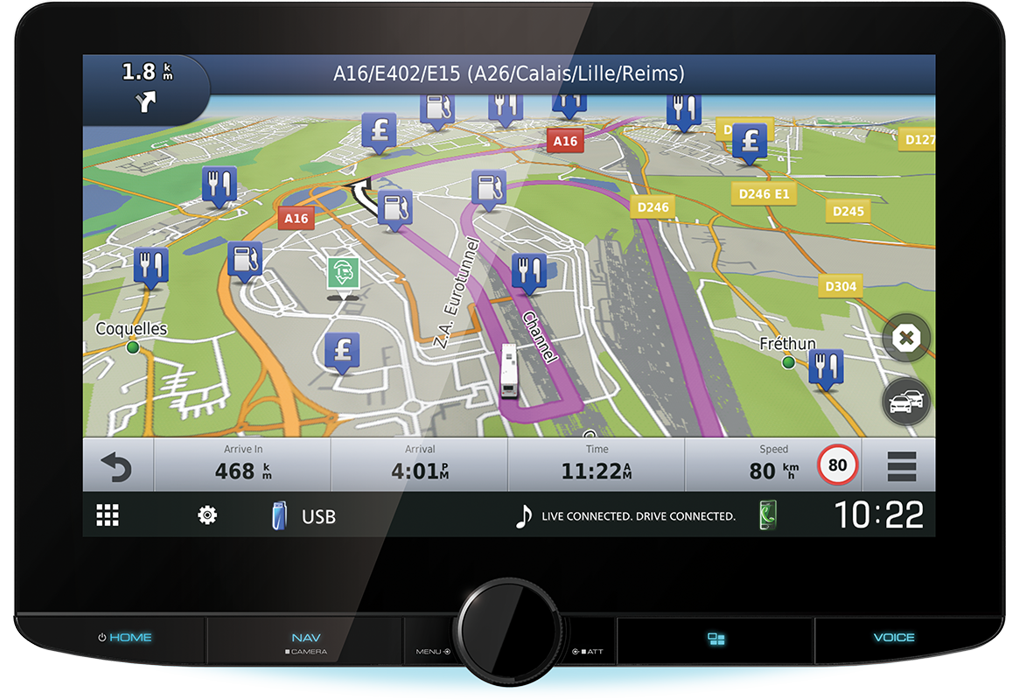

- Equipped with the industry leading Garmin navigation system offering a variety of display options to make your driving easier
- Routes suggested according to the RV, Truck or Car Profile. Camper contact by NKC, ACSI & HERE campsites.
- 3 Years Garmin map care.
- DAB+ radio tuner for noise & interference free reception and crystal-clear digital stereo sound
- Bluetooth(R) Wireless Technology for hands-free calls and music streaming. (Available functions depend on cell phone).
- Compatible with Hi-Res Audio which provides greater sound clarity and detail than standard compressed digital audio formats.
- Up to 4 Camera Inputs which allow for the utmost in convenience, flexibility and safety
- Digital Sound Processor, Time Alignment & 13-Band EQ for optimal sound tuning enhancements.
- Steering wheel remote control adapter & OEM Display interface ready (Optional car specific interface required).
General Features
- DIN Size 2 DIN
- Security Code Function ( user set)
- Selectable GUI Background Wallpaper
- Key Illumination Variable color
- Rotary Encoder & Control Knob
- Touch sensor
- Installer Memory
- Back-up Memory
- Attenuator with Smooth Volume Return
- Optional IR remote controller, KCA-RCDV340
- Digital Clock (24H)
Multimedia GUI Features
- Software updates (SoC) via USB
- Graphics Type Graphics
- Top Menu Customize
- Multi Widgets

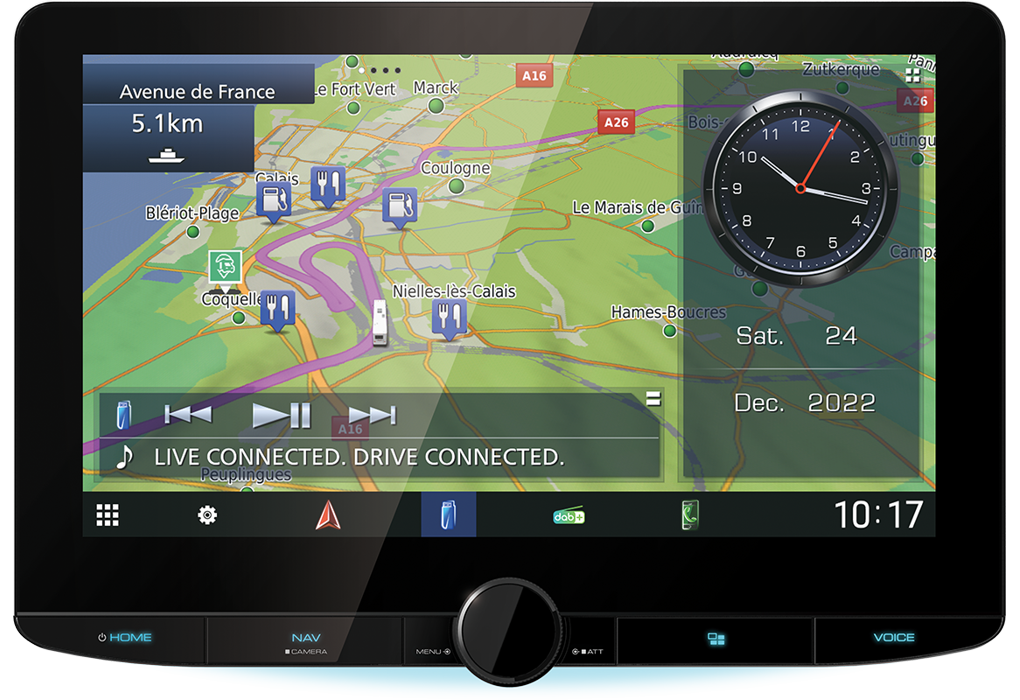

- Multi (up to 4), Clock, Weather & Photo Frame Widget
- Animation
- Multi touch function, (Garmin navigation)
- R-CAM interrupt
- R-CAM Caution On Screen Display
- R-CAM Parking Guide Lines, customizable
- Front Camera Interruption
- Front view camera mirror
- DashCam Control
- Menu text in selectable language
- 22 languages: English(UK)(Default), English(US), Spanish, French, German, Italian, Dutch, Russian, Portuguese, Chinese (Simplified), Chinese (Traditional), Thai, Turkish, Arabic, Persian, Hebrew, Greek, Malaysian, Indonesian, Polish, Czech, Hungarian.
Monitor Features
- In-Dash/On-Dash In-Dash
- LCD type 10.1 inch Wide HD screen (1280 x 720p)
- LCD backlight LED
- Display Mode
- 3 Mode (Full(default)/Auto/Normal)
- Screen Adjustments Noon/Night Mem/Brightness/Tint/Colour/Contrast
- Dimmer function
- Manual/Sync/Navi Sync
- Dimmer Level Sync / On / Off
- Visual Source Mode Mirorring/CarPlay/Android Auto.
- Touch Panel
- Capacitive
- Display film Anti-Fingerprint / Anti-Reflection / Anti-Glare)
- High Definition Display
- Mechanism type Floating screen
- Tilt mechanism control -10° ~ +45°
- Forward/backward mechanism control 0 ~ 22mm (fixed by screws)
- Up/Down mechanism control 0 ~ 39mm (fixed by screws)
- NTSC/PAL judge (Auto)
- Display Off Mode
Audio features
- Max. Output Power 4 x 50W
- Pre-out 3RCA: Front/Rear/Subwoofer
- Pre-out Output Level 5V
- Volume Offset
- 2 Zone Control
- Att.(-20dB) with smooth Volume Return
Multimedia DSP Features
- DSP Chip AK7738
- Position Control
- Position Preset 4 Presets
- Position Cabin Size
- Parametric Equalizer
- Parametric Equalizer Bands 13
- Preseted Parametric Equalizer Settings
- Manual Parametric Equalizer Settings
- High Pass Filter (HPF)
- Low Pass Filter (LPF (Non-Fading)
- 3-Way X'Over
- Source DSP Memory
- Channel Level Control
- Space Enhancer
- Supreme
- Realizer
- Loudness
- Stage EQ
- Bass Boost
- Drive EQ+
- Speaker Size & Location Control
- Listening postion control / Time Alignment
Video Features
- Audio Video Output, Video: RCA, Audio: mini-jack
- Audio/Video Input, AV-input or Camera input (Selectable)
- HDMI input
- Video-In for Rear-view Camera 1
- Detection Mode Rear View Camera Reverse sensor wire
- Parking Guide Line
Tuner Features
- FM Reception
- AM (MW/LW) Reception
- Tuner Presets (FM/AM) 20 Presets (15FM / 5AM)
- Tuning mode Auto1/Auto2/Manual
- Up/Down Seek/Scan
- Automatic Memory Entry (AME)
- FM Stereo / Mono Selector
- Radio Data System
- Radio Text Plus
- Traffic Information
- Local search
- Auto TP search
- Enhanced Other Networks Function (EON)
- Program Type Function (PTY)
CE DAB tuner features
- Digital Radio Certification Mark
- DAB/DAB+ BandBand III
- DAB/DAB+ Mode I, II, III, IV
- Intelligent seek
- Tuning mode / Seek mode Auto1/Auto2/Manual
- Service preset 15 ch * 1 bank presets,
- Service list by alphabet order
- Preset list
- Alphabet Search
- Traffic Information
- DAB-DAB/DAB-FM auto switch
- Seamless DAB-FM blending
- DLS (Dynamic Label)
- PTY (Programme Type) search
- PTY (Programme Type) watch
- Announcement Switching (ASW) Select
- DMB Audio (Digital multimedia broadcasting)
- Soft linking
- Antenna power supply on/off switch Yes
Playable Audio File
- AAC (*.m4a) files are playable USB/SD
- AAC (*.aac) files are playable USB/SD
- MP3 files are playable USB/SD
- WMA (.wma) files are playable USB/SD
- WAV (.wav) files are playable USB/SD
- FLAC files are playable USB/SD
- Ogg Vorbis (.ogg) files are playable USB/SD
- DSD high resolution audio format USB/SD
CE_Playable Video file
- MPEG1/2 files are playable USB/SD
- MPEG4 files are playable USB/SD
- WMV files are playable USB/SD
- H.264 files are playable USB/SD
- mkv files are playable USB/SD
- JPEG files are playable USB/SD
- BMP files are playable USB/SD
- PNG files are playable USB/SD
USB Features
- Rear USB Terminal, Pigtail (20cm)
- USB Type 2.0 High speed
- USB extension cable supplied yes, 1m
- Drive Change
- Tag Information Display
- Album Art Display
- Repeat / Random Play
- Category search
- Link Search
- Resume play
- Time code display
iPod Features
- Connection via: USB / BT / Wifi
- Made for iPhone
- Album art support
- Alphabet search
- Skip search
- iPod Accessory Protocol (iAP) iAP2
- Works with Apple CarPlay Wireless or Wired via USB
- Android Phone Control
- Connection Port USB/Wifi/Bluetooth
- Works with Android Auto
- Android Open Accessory Protocol
SD-card Features
- SD card type: SD / SDHC / SDXC
- Max capacity2000 Gb
- Repeat play Folder/File/All
- Random play Folder
- Time code display
- Resume play
Bluetooth General Features
- Hands Free Profile (HPF) V1.7
- 2 phones full time connection
- Audio Streaming (A2DP), (SBC/AAC)
- Serial Port Profile (SPP)
- Simple Secure Pairing (SSP)
- Phonebook Access Profile (PBAP)
- Audio/Video Remote Control Profile (AVRCP), V1.6
- Multi Profile Support
- iPhone & Android automatic pairing via USB
- KENWOOD Remote App Ready available in App Store & Play store
- KENWOOD Portal App Ready
- KENWOOD Music Mix Support
- Private mode
- Interrupt call request
- Alphabet Search (Phonebook)
- Voice Control
- Noise Canceller
- Echo Canceller
- Network & Wifi features
- WiFi built-in
- Frequency Range Dual Band (2.4GHz / 5GHz)
- IEEE standard 802.11a/b/g/n/ac
Navigation Features
- Guidance by Garmin
- Touch-screen controllable
- IR Remote controllable
- Graphical Resolution HD
- Built-in Map Data OEM CN Europe NTU 2022 ALL North
- Built-in Map DataOEM CN Europe NTU 2022 ALL South
- Map Update Via download on SD card
- Map care 3 Years (Starts after 20km first time driving)
- Default Position Depend on locale setting
- 3-Dimensional Map Display
- 2-Dimensional Map Display
- Primary/Secundary GUI
- Auto Zoom Function
- Voice Language selectable
- Text Language Selecetable
- Keyboard Language Selectable
- Keyboard Layout QWERTY or ABCDE
- Text-to-Speech (TTS) Voice Guidance
- Voice Guidance
- Destination Search Keyboard
- POI's (Car/Truck/RV/user)
- Map
- Coordinates
- Multi Destination Search, Faster Time / Shorter Distance / Less Fuel
- Automatic Re-Route
- Way Points (Favorites)
- Traffic Message Channel Built-in
- Easy-to-use Graphical Interface
- ecoRoute™
- Turn-by-turn' directions
- Lane assist with photo real junction view
- Half junction view
- PhotoReal junction view
- 3D Traffic
- 3D Terrain
- 3D Landmarks & buildings
- Globe view (world mapping)
- Support Unicode (World Wide)
- Multi-route choice
- Localized road signs and auto text
- Localized map configuration and display
- My Trends
- Speed Limit Indicator
- Faster Routing & Map Display
- Map Buttons and Map Tools
- Door to Door Navigation (point addressing
- Points of intrest (POI), more than 6 million points
- Custom POI's
- Smart POI Search
- POI Call Button
- Custom "Where To" Menu
- Search Bar with Predictions
- Brows POI's on Map
- Birds Eye lane guidance
- Turn-by-Turn Instructions
- Day/Night Colour mode, Manual/Automatic
- Detour Re-Routing
- Route Preference Function
- GPS Info page
- Customizable vehicle profile information
- Phone call by POI search (Bluetooth Function)
- Phone number search
- Dash-Cam Playback Link
CE_Truck_Navigation_Feat.
- Truck/camper navigation
- Truck Profile
- Truck Specific Routing
- Truck POI's
- Enable/Disable Restrictions
- Customizable Cautionary Messages
- Suspend Resume UI
- Highlight Weight Stations While Routing
- Environmental Zones
- Recreational vehicle (RV) Profile
- ACSI campsites POI
- NKC campsites POI
- HERE campsites POI
- Sunset / Sunset info
- POI disclaimer Yes
- Visual/Audio Warning on Speed Limit Change

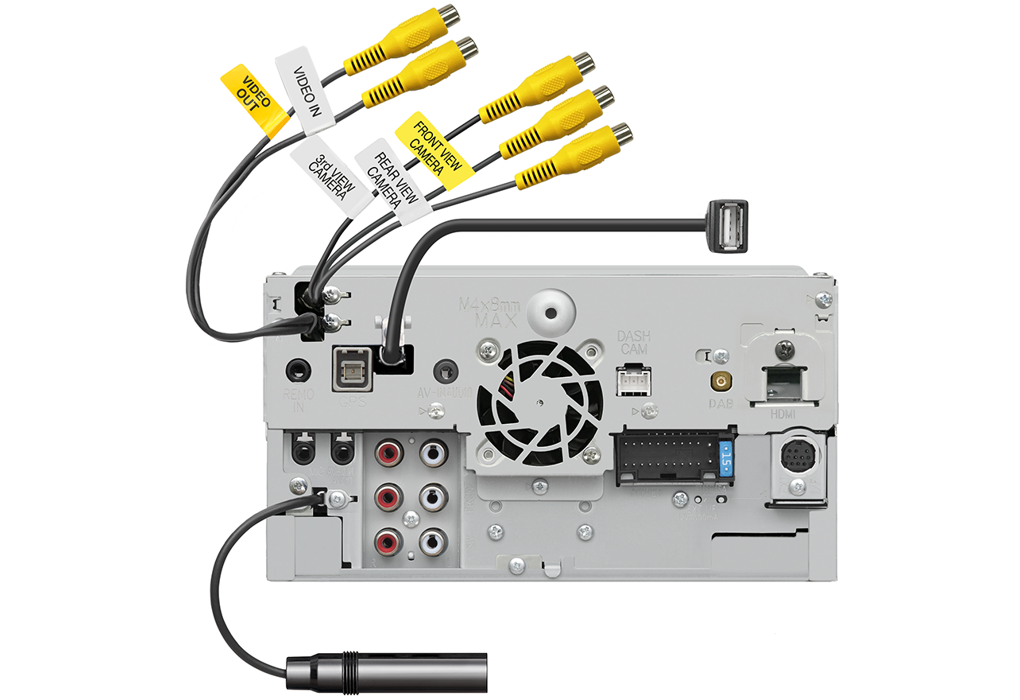

Connectivity
- USB interface 1 x Rear side
- SD card slot
- OEM Wired Remote Control ready, Optional interface needed
- OEM Display Control ready
- Programmable OEM Steeringwheel Remote Function
- DC-Cord 22pin to ISO
- Parking sensor (handbrake) wire
- Power Control (P.CON) wire
- Speedpuls input wire
- Video Out RCA x1
- Reverse sensor wire
- Rear View Camera Input
- Dedicated RCA Video-in
- Front View Camera Input selectable: Front / Dash-Camera-in
- 3rd View Camera input
- HD camera input Front & Rear camera input
- Multi View Camera Control Line Yes
- Dashcam Link
- HDMI input Type A
- GPS Aerial Input HRS GT5-1S connector
- FM Antenna Input JASO connector
- DAB Aerial input SMB connector
- External microphone input 3,5mm mini-jack
Audio Specifications
- Maximum Power 50W x 4
- Output Power (DIN45324,+B=14.4v) 22W x 4
- Output frequency band 20Hz ~ 88kHz
- Preout Level 5000mV / 10kOhm,
- Preout Impedance ≤ 300Ohm
- Speaker Impedance 4Ohm ~ 8Ohm
Network & WiFi Specifications
- Wifi IEEE standard 802.11a/b/g/n/ac
- Wifi Frequency Range 2.4 - 5 GHz
Navigation specifications
- Receiver type High sensitivity GNNS receiver
- Acquisition time cold < 26 sec
- Update rate 1/sec continuous
- Position accuracy < 2 meters/typical
- Velocity accuracy 0.05 meter/sec RMS
- Positioning method GPS / GLONASS
- Antenna External GNNS antenna
Accessories
- DC cord (Molex to ISO) 25 cm
- usb extension cable 1 piece, 1 meter
- Screws (Parker-type) Ø 3 x 6mm, 2 pieces
- Screws (M-type) M5 x 8mm, 6 pieces
- GPS Antenna Ground Plane Mount (Adhesive Metal Pad)
- Handsfree Microphone with 3 m cable
- Bracket A 2 pieces
- Bracket B 2 pieces
- Bracket C 1 pieces
General Specifications
- Operation voltage 12V DC car battery
- Dimensions (WxHxD) 1748 x 100 x 155mm
- Weight 3250 gr.
- Instruction Manuals Multi-language quick Guide
How will you send my item?
We ship to addresses within the UK using Royal Mail and DPD couriers.
How much does delivery cost?
- Royal Mail Tracked - 2-4 working day tracked service - £5.99.
- DPD 2-3 Day - 2-4 working day tracked service - £8.99 .
- DPD Next Day - Next working day tracked service - £12.99.
- DPD Delivery - Non specific DPD service for larger/bulkier orders - £20.99.
- Saturday/Sunday Service - Tracked service specified for Saturday/Sunday - £23.99.
For orders to UK Non-mainland and International destinations, there will be an additional charge at checkout. Please see below for more information.
How long does delivery take?
Depending on the delivery service you choose, delivery usually takes between 1-4 working days to mainland UK from the moment we despatch your order. Orders to UK non-mainland and international destinations can take longer.
When will you despatch my order?
Orders placed before 3pm are processed and despatched the same day (excluding bank holidays and weekends). Orders placed on weekends will be processed and despatched the following working day.
*Please note that international orders may require extra checks before we are able to despatch your order so timescales may vary.
Can I track my delivery?
Yes - Order tracking is offered as standard on all items, whether they are shipped via DPD or Royal Mail. You will receive your tracking information via email once we have despatched your order.
UK Non-mainland and International destinations.
Post Brexit some of our delivery partners have changed the way we ship to international and offshore destinations. This means that the cost of shipping to some locations has increased significantly and additional paperwork may need to be completed for some international orders.
Shipping for all items to UK Non-Mainland and International destinations will incur a charge at checkout. This charge is not final and additional postage may be required. Furthermore, this may incur additional delivery delays and also local customs charges which the buyer is responsible to pay.
Shipping to international destinations may require further security checks and I.D. to be provided by the cardholder. We reserve the right to cancel any orders where an order does not pass our security checks or the additional postage is not paid.
To avoid any confusion we would advise that you contact us before making your order.
What do you class as UK Non-mainland?
Rep. Ireland, N. Ireland, Channel Islands, Jersey, Guernsey, Isle of Wight, Isle of Man and Scottish Highlands. If you are unsure whether your address is classed as UK Non-mainland please feel free to contact us and an advisor will be happy to help.
For any further enquiries with regards to your delivery please contact us on 020 8561 9845 and one of our adviser's will be happy to help.
If you're not happy with your item or you've changed your mind.
Even though we're sure you'll be happy with your purchase, it's important that you are aware of how we deal with returns in the event that you need to send something back.
We understand how inconvenient it can be when you buy a product and aren't 100% satisfied with it. For this reason, we have designed our returns policy to prevent any further inconvenience to you in these instances.
Under 14 days
- You can return your goods for a full refund or exchange as long as you inform us of your intention to return the goods within 14 days of receipt, starting from the day after you receive your goods (Exclusions apply, see below.)
- All return costs are down to the buyer, and it is recommended that you return your items using a trackable method with appropriate insurance (if required).
- Once we have approved your return, please ensure that you return the item within 14 days. We will then inspect and process your return within 14 days of receiving your goods.
- Items need to be returned in "as new" condition in their original packaging. We don't mind if you open the product to check it, however any used or damaged products will be non-returnable so please take care when opening your items.
- Please ensure products are packed securely and product packaging has not been defaced with courier labels and tape.
- Please ensure a completed returns form is included with all items being returned.
After 14 days
- We will not offer a refund after 14 days of you receiving your delivery unless your product is deemed faulty. Please see further details below.
Exclusions from our returns policy
As we're sure you'll understand, there are some products that we can't offer returns on due to their nature. These include:
- Special order items (these items will be clearly identifiable).
- Custom cut items. (Speaker cable, airline etc ordered by the meter.
- Clothing due to health and hygiene reasons.
- Products that include software which require activation.
Please note that these exclusions do not apply to items that become faulty.
If your product becomes faulty
We endeavour to get your items to you in fully working order, however in the event that your items do become faulty, please read below on what you should do next.
In a lot of cases with some products, faults can be fixed by performing some basic troubleshooting, so to prevent any further inconvenience to you we advise that you contact our Customer Service team who can guide you through some basic troubleshooting before sending items back. Or in some cases our manufacturers have a helpline.
Under 30 days
- If your items become faulty within 30 days of delivery you are entitled to a full refund or exchange. Please contact our customer service centre who will provide necessary returns details.
- Please send the items back with a completed returns form including a detailed description of the fault and your original order number.
- Once we have fully tested the item and confirmed the fault, we will process the refund or exchange including cost of carriage back to us (within reason).
- If during our testing we cannot find a fault, no refund or exchange will be given, and you will be charged for delivery of the item back to you.
After 30 days
- After 30 days you will still be able to get your faulty items repaired or replaced within the manufacturers warranty and we will be happy to assist you with this. Please contact our customer service team to find out the best way to get your items repaired or replaced. Please be aware that after 30 days we will not cover you for any carriage costs. In some cases to save time and carriage, items can be sent directly to the manufacturers service centre.
Exclusions from our faulty items returns policy
- Burnt or Blown Voice coils on all speakers are not classed as a manufacturing defect and these are not covered under warranty.
- Incorrectly installed products causing malfunction (We always suggest getting items installed professionally.)
Air Lift Warranty information
Click here for Air Lift warranty information.
PLEASE NOTE: ALL RETURNS NEED TO BE ACCOMPANIED BY A COMPLETED RETURNS FORM: DOWNLOAD
DONT HAVE A PRINTER? Just ensure you include the relevant information required on a note inside the return so that we can process your request.
